Hybrid Stepper Motor

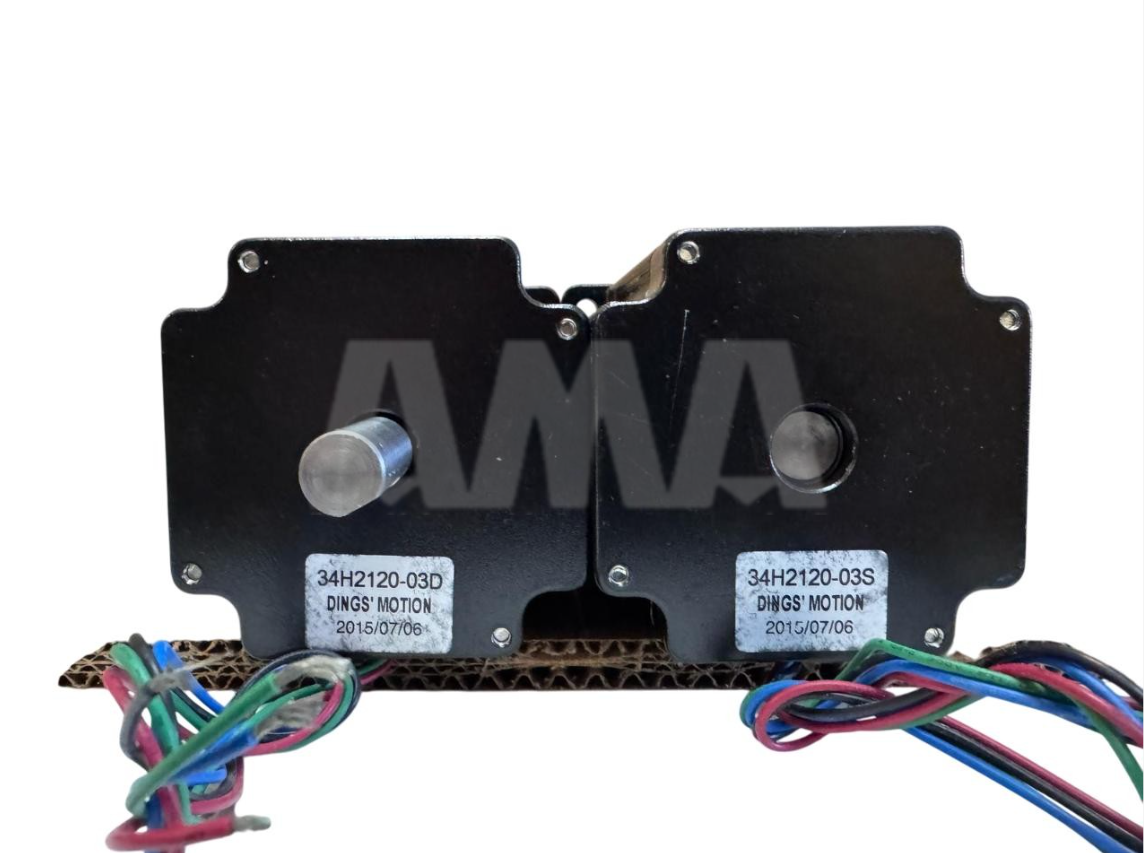

Model Number: 34H2120-03S (Single-Shaft) & 34H2120-03D (Dual-shaft)
Serial Number: 072806688

Product Description:
The DINGS’ 34H2120 is a NEMA 34 (86×86mm) hybrid stepper motor, available in both single-shaft (34H2120-03S) and dual-shaft (34H2120-03D) configurations. Engineered for high torque and precision, it excels in medium-to-heavy-duty applications, providing excellent torque density and smooth operation across low-to-moderate speeds.

Key Specs & Features
- Frame: NEMA 34 hybrid stepper motor
- Step Angle Options: 0.9°, 1.8°, 0.76°—typical for hybrid motors
- Stack Variant: 120mm stack (designation “2120”)
- High Holding Torque: Up to ~20Nm (177in-lb) depending on stack length
- Construction: Bipolar winding, high torque at low speeds, minimal torque ripple
- Customizability: Options for encoders, IP-rated coatings, modified shafts, gearheads, and hollow shafts

Dimensional Highlights
- Frame Size: 86×86mm
- Stack Length: 120mm
- Mounting Bolt Pattern: Standard NEMA 34 flange
- Shaft Options: Solid or dual-end shafts (for encoders or couplers)
- Electrical Leads: 4-phase bipolar, AWG20 (typical)

Mounting Details
- Mounting Orientation: Face-mount the flange to your machine frame
- Bolt Holes: Four M5–M6 threaded flange holes
- Electrical Termination: 4 stator leads—standard pigtail or connector-ready
- Handling Note: High-precision coil alignment—handle with care

Application & Compatibility
- Common Uses: CNC, large-format 3D printers, pick/place robotics, packaging machines, industrial automation
- Compatible Drives: Bipolar chopper drivers (e.g. Gecko, Leadshine, DINGS-stepper drives)
- Custom Add-Ons: Encoders (incremental/absolute), IP65/67 coatings, planetary gearheads
- Delivery Flexibility: Quick-turn prototypes and higher-volume builds available
